Track Drive Systems

From hand driven winches to our sophisticated yet easy to install electric motors - SDrive, TDrive and TracDrive - our motors can drive your loads of up to 400 kg.

All Triple E's motor drive units are designed and manufactured in-house. We hold a large stock of standard units in both 230 V and 120 V, with 400 V 3 phase an easy switch we can make. If you need a motor for an unusual requirement we can design and manufacture a custom motor for your project in just a few weeks.

All our motor drive units are track mounted to reduce unnecessary clutter and hazards in precious wing space, they can also be wall mounted if required. All feature spring tensioners, variable speed and all are plug-and-play so there's no need for an electrician to fit them.

With both wired and wireless control options, or integration into a show control system, Triple E motors can be used for all motorised track requirements.

Documents

There are a number of diagrams available for this system, showing possible layouts and product dimensions.

Track Drive Documents


Product list for Track Drive Systems

The 9 products listed below may be used in the Track Drive Systems system.

10 METRE PENDANT WITH OPEN, CLOSE AND STOP BUTTONS

10 METRE PENDANT WITH OPEN, CLOSE AND STOP BUTTONS

This is a motor control pendant for SDrive and TDrive motors. The functions are open, close and stop. It comes as standard with a 10 m cable and XLR connector.

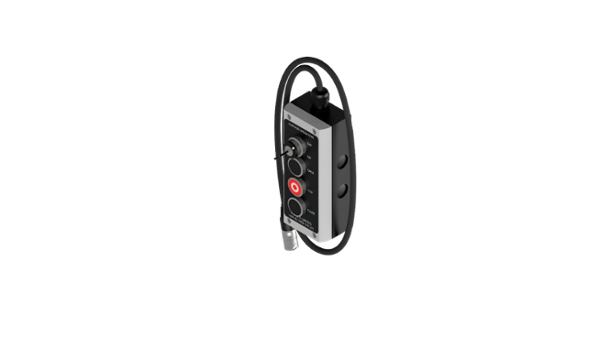

10 METRE PENDANT WITH OPEN, CLOSE, STOP AND KEY SWITCH

10 METRE PENDANT WITH OPEN, CLOSE, STOP AND KEY SWITCH

This is a motor control pendant for SDrive and TDrive motors. The functions are open, close and stop plus a key switch to prevent operation. It comes as standard with a 10 m cable and XLR connector.

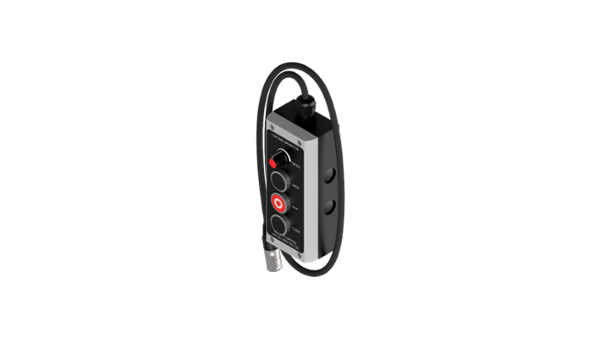

10 METRE PENDANT WITH OPEN, CLOSE, STOP BUTTONS AND SPEED ADJUSTMENT

10 METRE PENDANT WITH OPEN, CLOSE, STOP BUTTONS AND SPEED ADJUSTMENT

This is a motor control pendant for SDrive and TDrive motors. The functions are open, close and stop plus variable speed. It comes as standard with a 10 m cable and XLR connector.

HD MOTOR DRIVE UNIT FOR UNITRACK/UNIBEAM

HD MOTOR DRIVE UNIT FOR UNITRACK/UNIBEAM

Motor drive unit for all corded systems incorporating control with open/close and stop functions. Variable speed. 230 V supply. Maximum curtain weight 400 kg straight track, 300 kg curved track.

MOTOR DRIVE UNIT FOR UNITRACK/UNIBEAM/ERAIL

MOTOR DRIVE UNIT FOR UNITRACK/UNIBEAM/ERAIL

TDrive Motor drive unit is a plug and play track mounted motor system for all corded tracks incorporating control with open/close and stop functions with variable speed. 230 V supply. Maximum curtain weight 300 kg straight track, 200 kg curved track. It is mainly used on UniTrack and UniBeam systems but can also be fitted to Erail.

TD1002F TDRIVE AND TRACDRIVE WALL MOUNTING

TD1002F TDRIVE AND TRACDRIVE WALL MOUNTING

Pair of brackets for wall mounting our TDrive and TracDrive motors. It is recommended that the brackets are fitted to vertical Unistrut sections so that the complete motor unit can be moved up and down to assist with rope tensioning.

TDR-MAS-06 - TDRIVE & TDRIVE HD CURVE MOUNTING PLATE

TDR-MAS-06 - TDRIVE & TDRIVE HD CURVE MOUNTING PLATE

A steel plate that must be used with a TDrive or TDrive HD on a curved system.

TRACK MOUNTED DRIVE UNIT FOR ERAIL

TRACK MOUNTED DRIVE UNIT FOR ERAIL

SDrive This variable speed plug and play track mounted motor system. It will drive straight and curved Erail curtain systems up to a maximum curtain weight of 50 kg. It is extremely silent and fitted with power and limit connectors so that no specialist skills are required for installation. The SDrive speed can be adjusted from a crawl to a maximum speed of 0.7 m/s. The Unit requires a single phase mains supply.

WIRELESS REMOTE CONTROL FOR ALL MOTORS

WIRELESS REMOTE CONTROL FOR ALL MOTORS

A complete set of components for SDrive and TDrive motors that enables wireless operation with open, close and stop functions. The sender unit requires a local single phase power supply.
