2Way - Medium Duty Walkalong Curtain Track

A robust, maintenance-free track with a variety of easy-to-install mounting options for walkalong operation. Ideal for masking, perimeter tracks, cycloramas and more for stage, studio, retail, sports, and office environments.

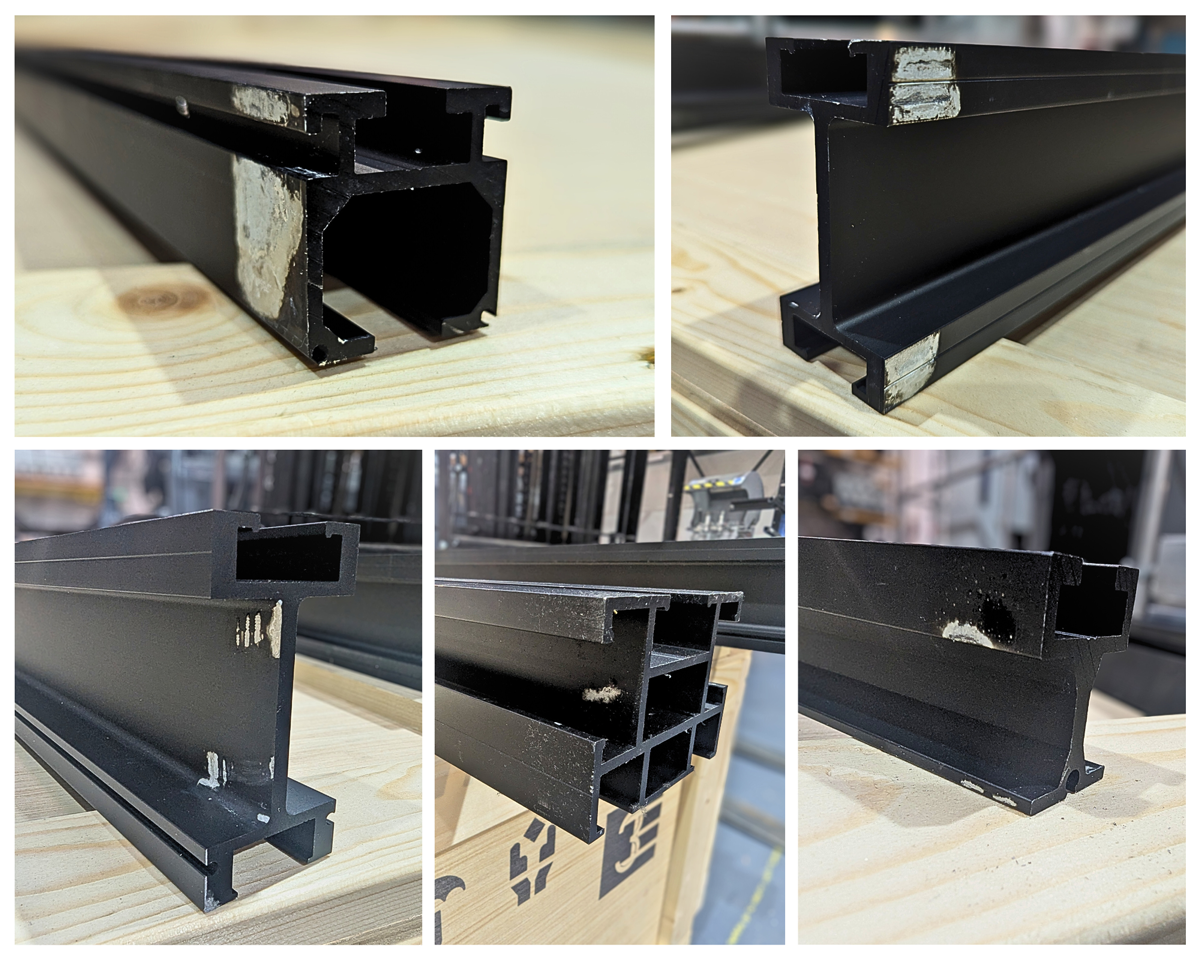

2Way is an aluminum extruded black anodized track section. The standard stock length for 2Way is 6.1 m (20 feet) and can be curved to a minimum radius of 500 mm. The 2Way section incorporates a ‘Tee’ slot in its upper face that accepts a proprietary M8 channel nut which is used to attach all components to the track.

2Way is perfect for permanent installations in a variety of locations both inside and out of entertainment venues. It has also proved itself in touring environments for robust but smaller on set track applications. With both plain and ball-raced runners available 2Way is affordable for even the most modest budget.

2Way also boasts a point system with both a 90 degree and a parallel option and wireless or wired control.

Key Points

  • Walkalong operation only

  • 35 x 40 mm (WxH)

  • Channel style track

  • Plain and ball-raced runners available

  • Custom RAL powder coating available

  • Used for drapes up to 8 m tall

Documents

There are a number of diagrams available for this system, showing possible layouts and product dimensions.

2Way Documents


Product list for 2Way

The 31 products listed below may be used in the 2Way system.

2WAY 1000 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2WAY 1000 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

Black anodised 2WAY curved track section, 1m radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 1000 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2WAY 1000 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2W01SC-1000-90 Natural Aluminium (Silver) 2WAY curved track section with a 1m radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 1500 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2WAY 1500 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2W01BC-1500-90 Black anodised 2WAY curved track section with a 1.5m radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 1500 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2WAY 1500 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2W01SC-1500-90 Natural Aluminium (Silver) 2WAY curved track section with a 1.5m radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 500 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2WAY 500 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2W01BC-500-90 Black anodised 2WAY curved track section with a 500 mm radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 500 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2WAY 500 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2W01SC-500-90 Natural Aluminium (Silver) 2WAY curved track section with a 500mm radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 750 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2WAY 750 mm x 90 DEG. CURVED TRACK BLACK WITH 600 mm STRAIGHT ENDS

2W01BC-750-90 Black anodised 2WAY curved track section with a 750mm radius (on the centre line) x 90 degrees to form a right angled section.

2WAY 750 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2WAY 750 mm x 90 DEG. CURVED TRACK SILVER WITH 600 mm STRAIGHT ENDS

2W01SC-750-90 Natural Aluminium (Silver) 2WAY curved track section with a 750mm radius (on the centre line) x 90 degrees to form a right angled section.

2WAY BALL RACED WHEEL RUNNER (WLL 15 KG)

2WAY BALL RACED WHEEL RUNNER (WLL 15 KG)

2W06C This carrier is used for our 2WAY track system. The ball raced bearing wheels ensure smoother running conditions when used with heavier curtains.

2WAY CEILING MOUNT CLIPS (5 PAIRS)

2WAY CEILING MOUNT CLIPS (5 PAIRS)

2W30 These clips are used to attach 2WAY track systems directly to a ceiling or soffitt. One end is formed to locate into the side channel of the 2WAY track, the other has a hole to accept a wood screw. The clips are sold in bags of 5 pairs (10) and should be mounted at regular centres not exceeding 1.5m (5 feet).

2WAY CUSTOM CURVED BLACK TRACK - MINIMUM RADIUS 500 mm - PER LINEAR METRE

2WAY CUSTOM CURVED BLACK TRACK - MINIMUM RADIUS 500 mm - PER LINEAR METRE

Curved 2Way track lengths can be rolled to any required radius (min 500mm).

2WAY CUSTOM CURVED SILVER TRACK - MINIMUM RADIUS 500 mm - PER LINEAR METRE

2WAY CUSTOM CURVED SILVER TRACK - MINIMUM RADIUS 500 mm - PER LINEAR METRE

Curved 2Way track lengths can be rolled to any required radius (min 500mm).

2WAY ENDSTOP

2WAY ENDSTOP

2W24 the endstop for our 2WAY track systems; is attached to the track ends and used to anchor the end of curtains. The fixing uses a button head screw that requires a 4mm Allan Key.

2WAY JOINT PLATE FOR STRAIGHT AND CURVED TRACK

2WAY JOINT PLATE FOR STRAIGHT AND CURVED TRACK

2W05 the 2WAY joint set consists of a plate that slides into the top channel of the extrusion and is secured in place with four M6 grub screws. It comes with two roll pins for aligning the running surfaces.

2WAY OVERLAP ARM BLACK

2WAY OVERLAP ARM BLACK

2W07A this overlap arm finished in black can be combined with our 2W07W master carriers. It is used to create a curtain overlap (500mm/1'8") where two curtains meet and are always used in pairs.

2WAY PLAIN WHEEL RUNNER (WLL 15 KG)

2WAY PLAIN WHEEL RUNNER (WLL 15 KG)

2W06P this runner is used for our 2WAY track system. The wheels run on a plain shaft and are suitable for all curtain applications.

2WAY POINTS SYSTEM - PARALLEL

2WAY POINTS SYSTEM - PARALLEL

The Points System is a simple and elegant addition to 2Way track system, allowing multiple drapes to be used on one track or to create different spaces in one room.

2WAY POINTS SYSTEM - RIGHT ANGLE - LEFT HAND

2WAY POINTS SYSTEM - RIGHT ANGLE - LEFT HAND

The Points System is a simple and elegant addition to 2Way track system, allowing multiple drapes to be used on one track or to create different spaces in one room.

2WAY POINTS SYSTEM - RIGHT ANGLE - RIGHT HAND

2WAY POINTS SYSTEM - RIGHT ANGLE - RIGHT HAND

The Points System is a simple and elegant addition to 2Way track system, allowing multiple drapes to be used on one track or to create different spaces in one room.

2WAY POINTS SYSTEM - WIRED CONTROL

2WAY POINTS SYSTEM - WIRED CONTROL

The Points System is a simple and elegant addition to 2Way track system, allowing multiple drapes to be used on one track or to create different spaces in one room.

2WAY POINTS SYSTEM - WIRELESS CONTROL

2WAY POINTS SYSTEM - WIRELESS CONTROL

The Points System is a simple and elegant addition to 2Way track system, allowing multiple drapes to be used on one track or to create different spaces in one room.

2WAY STRAIGHT TRACK BLACK (PER METRE)

2WAY STRAIGHT TRACK BLACK (PER METRE)

2W01B Black anodised 2WAY track extrusions are stocked in 6.1m (20 foot) lengths and can be cut to size as required. The maximum permitted length for UK shipping is 3.05m (10feet). The continuous tee slot in the top of the track accepts our M8 ERAIL and 2WAY nuts which can be inserted anywhere along the track for attaching suspension fittings.

2WAY STRAIGHT TRACK SILVER (PER METRE)

2WAY STRAIGHT TRACK SILVER (PER METRE)

2W01S Silver anodised 2WAY track extrusions are stocked in 6.1m (20 foot) lengths and can be cut to size as required. The maximum permitted length for UK shipping is 3.05m (10feet). The continuous tee slot in the top of the track accepts our M8 ERAIL and 2WAY nuts which can be inserted anywhere along the track for attaching suspension fittings.

2WAY WIRE HOOK FOR RUFFLETTE HEADED CURTAINS

2WAY WIRE HOOK FOR RUFFLETTE HEADED CURTAINS

2W29 This hook can be used in conjunction with 2W06/07 carriers on 2WAY tracks to attach curtains headed with Rufflette tape.

DEADLINE FIXING (FOR USE WITH ERL17 OR ERL23)

DEADLINE FIXING (FOR USE WITH ERL17 OR ERL23)

The 2W15 is used to suspend track sections.

ERAIL/2WAY HOOK CLAMP

ERAIL/2WAY HOOK CLAMP

ERL14 Hook clamp finished in black used for attaching ERAIL and 2WAY track sections to a tube or truss with a maximum diameter of 50mm. It can also be directly attached to the track or to an ERL17/ERL23 suspension bracket.

ERAIL/2WAY M8 STUDDING (M8 x 150 mm C/W NUTS & WASHERS) DIRECT TO TRACK

ERAIL/2WAY M8 STUDDING (M8 x 150 mm C/W NUTS & WASHERS) DIRECT TO TRACK

ERL18 is a 150mm long M8 threaded rod comes supplied with an M8 Tee nut, 3 M8 nuts and 4 M8 washers. The studding fits directly into the top channel slot for both the ERAIL and 2WAY track systems and can be used with the TRA13 Girder Clamp.

GIRDER CLAMP

GIRDER CLAMP

TRA13 This girder clamp provides a suspension point from the flanges of an 'I' beam. It comprises of a length of Unistrut and two square 'U' bolts each attached to cranked rectangular clamp plates. Any flange width or thickness from a rolled steel or Aluminium joist beam can be accommodated. The suspension is achieved using a TRA 18 or ERL18 Studding Set. Safe Working Load data for this product is available on request.

M8 ERAIL/2WAY ATTACHMENT NUT

M8 ERAIL/2WAY ATTACHMENT NUT

M8ER2W This Tee Nut is used to attach all components into the top channel of our 2WAY and ERAIL track systems. It can be inserted into the channel and rotated by 90 degrees via an M8 bolt. It is supplied automatically with our 2WAY and ERAIL components but is also available as a spare item.

UNITRACK DEADLINE FIXING

UNITRACK DEADLINE FIXING

TRA15 is used to suspend track sections by rope cordage or wire rope. It comprises of a forged fitting and threaded M12 bush with a solid tubular loop springing from the top outer edges of the bush. It has a test rating of 150Kg Safe Working Load.

WALL BRACKET

WALL BRACKET

TRA16 Wall Bracket is used to attach a track to a wall or vertical surface.  The side arms are spaced 13mm apart to allow studding or threaded rod to attach into the top channel for any of our track systems. This component has been tested to a 100Kg Safe Working Load at a reach of 200mm.
